Minicolor G Gravicolor
Dosing and mixing units
Excellent mixing quality with highest repeatability are demanding requirements when dosing additives and regrind directly on the processing machine. motan MINICOLOR and GRAVICOLOR dosing and mixing units are designed to meet and exceed these requirements.
The MINICOLOR and GRAVICOLOR series are specially designed for injection moulding, blow moulding and extrusion. Innovative design, high quality engineering and technical specifications, guarantee optimum performance and reliability of the units.
General view of all dosing and mixing units
|
Additive/Masterbatch dosing unit
|
Dosing/Mixing unit
|
Dosing and mixing unit
|
MINICOLOR V
|
MINICOLOR G
|
GRAVICOLOR 30 MD
|
GRAVICOLOR 60
|
GRAVICOLOR 100
|
Dosing process
|
Synchronous
|
Synchronous |
Batch
|
Batch |
Batch |
Dosing system
|
Volumetric
|
Gravimetric (loss-in-weight)
|
Gravimetric (gain-in-weight)
|
Gravimetric (gain-in-weight)
|
Gravimetric (gain-in-weight)
|
Number of possible dosing heads (main component/subsidiary component)
|
- / 1
|
- / 2
|
- / 2
|
2 / 2
|
2 / 2
|
2 / 2
|
Dosing range main component (%)
|
Free-Flowing
|
Free-Flowing |
1 - 100
|
1 - 100
|
1 - 100
|
Dosing range subsidiary component (%)
|
|
|
0.1 - 10
|
0.5 - 10
|
0.3 - 10
|
* Total dosing throughput [kg/h]
|
|
|
30
|
60
|
100
|
** Dosing range additive with dosing screw G1 - G3 (kg/h)
|
0.04 - 48
|
0.04 - 48
|
|
|
|
** Dosing range additive with dosing disc DD1 - DT6 (kg/h)
|
0.07 - 458
|
0.07 - 458
|
|
|
|
Control
|
VOLU MC
|
VOLUnet MC
|
GRAVInet MC
|
GRAVInet GC
|
GRAVInet GC
|
GRAVInet GC
|
Timer function
|
|
|
|
|
|
|
Manual calibration
|
|
|
|
|
|
|
Automatic calibration
|
|
|
|
|
|
|
Regrind compensation function
|
|
|
|
|
|
|
Operation: 7-segment display / plastic film keypad
|
|
|
|
|
|
|
Operation: Graphic user interface / touch panel
|
|
|
|
|
|
|
Extruder tachometer signal processing
|
|
|
|
|
|
|
Recipe management
|
|
|
|
|
|
|
Process documentation (throughput acquisition etc.)
|
|
|
|
|
|
|
Can be networked (Ethernet)
|
|
|
|
|
|
|
Additives and main components are dosed
|
|
|
|
|
|
IntelliBlend for highest dosing and mixing accuracy
|
|
|
|
|
|
Micro dosing for minimum quantities
|
|
|
|
|
|
Most cost effective solution for colouring of masterbatch
|
|
|
|
|
|
Most cost effective solution for weighing all components
|
|
|
|
|
|
* Dosing throughput related to a bulk weight of 0.6 kg/dm3
** Dosing range related to a bulk weight of 0.8 kg/dm3

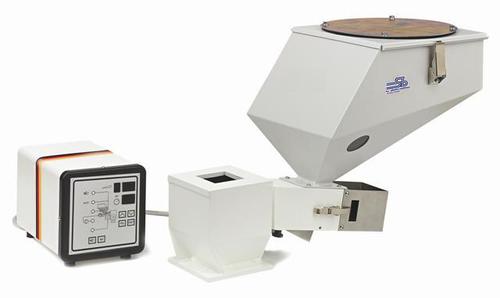

Minicolor V
METRO VL
Dosing and mixing unit
The demand for an excellent mixing quality and consistently accurate dosing are a must when combining additives with the virgin material at the processing machine.
The volumetric dosing and mixing unit MINICOLOR V meets and exceeds these requirements. Mounted between the machine hopper and the feed throat of the plastics processing machine it requires very little space.
A stainless steel cruciform in the mixing throat divides the free-flowing main component into two streams of material. They flow together with the simultaneously dosed additives at the feed inlet producing a homogeneous mixture.
Depending on need and requirement, screw or disc dosing units can be installed at the mixing neck. Disc dosing is ideal for translucent and opaque parts as well as for dosing very small quantities.
The additive supply hopper can be filled easily by hand or with a METRO VL Venturi hopper loader.
|
